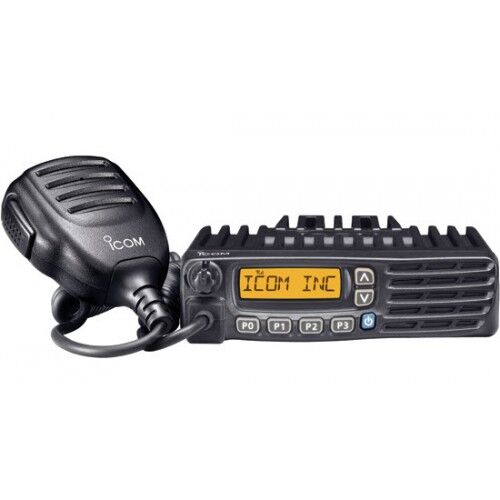

Icom F5220D VHF | F6220D UHF Digital Mobile Radio

Icom F5220D
Call For Availablilty
Icom F5220D VHF | F6220D UHF Digital Mobile Radio
$567.00
  • Stock: In Stock
  • Brand: ICOM
  • Model: IC-F5220D | IC-F6220D
  • SKU: Icom-F5220D-F6220D

Available Options

Icom IC-F5220D | IC-F6220D - Digital Yet Simple to Use

  • 128 Channels, 8 Zones
  • 5 Programmable Keys
  • 8 Character Display
  • Digital & Analog
  • 45 / 50 Watts (UHF/VHF)
  • Repeater Capable
  • PC Programming Setup
  • Supports ICOM's Digital Advanced System - IDAS™
  • Multi-site Conventional & Single-site IDAS Trunking Capable

Icom IC-F5220D | IC-F6220D AT-A-Glance

The IC-F5220D series provides NXDN™ CAI-based IDAS digital mode operation. It is compatible with IDAS multi-site conventional and IDAS multi-site and single-site trunking. 4W front mounted speaker 4 watts front facing speaker delivers clear and loud audio throughout a vehicle's cabin. In addition, the digital modulation provides distinct clarity even at the fringes of the communication range.

The HM-152 is supplied as a standard microphone, you can select from 5 levels of microphone gain for clearer transmission.  There are several optional hand microphones such as a DTMF (HM-152T), a heavy duty (HM-148G).

When you change the operating channel, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.

Icom Extended Warranty



Icom America Inc offers a 1, 2 or 3 year Extended Warranty on their land mobile radios. The Extended Warranty period starts after the standard warranty period expires.   This is a full manufacturer's warranty, backed by Icom America and it's service technicians.  Protect your original investment by adding Extended Warranty coverage.

End user pays all shipping fees to and from the service department for repairs.  Extended Warranty must be purchased at time of product purchase.  Icom Service centers are located in  the following states;  Washington, California, Illinois, and New York.

What's in the box:
1   F5220D or F6220D Radio (choose; frequency band & model)
1   Hand Microphone (HM-152)
1   Mounting Bracket
1   Power Cable (OPC-1132)
1   Owner's Manual

Antenna Information

You will need an antenna for this radio. When selecting an antenna please note:

  • The specific frequencies you use in the radio must fall within the antenna's frequency range.
  • You will need an antenna mount with a PL259 connector to attach the antenna to this radio.
  • If the mounting surface is NOT metal you will need a "No Ground Plane" antenna. Metal surfaces can use either type.
  • "Accessories > Antennas | Mobile" category has other name-brand antennas and mounts, including no ground plane antennas.

Radios modified at the customer's request, such as programming or installation of logic boards, are not returnable.  For more information please see our Returns Policy.

This radio is requires an FCC license to operate. We can assist you with getting a license.

General Features
FCC Approval Part 90 (Business License)
Frequency Band(s) VHF (F5220D) & UHF (F6220D)
# of Channels & Zones 128 Channels, 8 Zones (Groups)
Output Power 50W (VHF) & 45W (UHF)
Display 8 Character
# of Programmable Keys 6
Receiving Audio Output 400mW
Digital Yes
Trunking Capable Single-site IDAS digital protocol
Voice Scrambler | Encryption Yes - Digital mode only

Radio Programming Options

The following does not apply to FRS, MURS, GMRS, LTE, Satellite, or IP radios.

Most business radios aren't ready to use out-of-the-box. So radio programming is needed to set the frequencies in the radio. For some radios the frequencies can be set through a menu interface. While other radios must be programmed using a PC, radio software, and a cable to connect the radios.

Here are your programming options:

  1. We can program your radios - with radio orders
    • We provide basic radio programming for radios ordered through us. See the description below of basic radio programming.
    • Email us your Frequencies & Call Sign - the FCC requires dealers to verify your license before we program.
    • Please allow 1-2 days for first-time setup of radio programming.
    • Due to staffing limitations, we are not able to program radios purchased from other dealers.
  2. Match to your Previous Order
    • If you've ordered from us before we have your information stored.
  3. You can program the radio(s)
    • Connect Systems (all models): You can purchase software and cables from us.
    • Kenwood ProTalk Business Radios (NX-P1300/NX-P1200 series, TK series, PKT)
      • Have pre-stored frequencies and you can easily program these radios through the radio's menu interface.
      • Custom frequencies will require dealer programming.
    • Icom (all models): Icom no longer allows dealers to sell software and cables over the internet. You may call us to discuss your options.
    • Motorola Business Radios (models beginning with CLP. CLS, RM, RD):
      • Have pre-stored business frequencies (Part 90). Software to program these radios is available on the Motorola website.
      • Just go to the product page on Motorola's website and you can download it for free. We can sell you the cable.
      • Custom frequencies will require dealer programming.
    • Motorola Commercial Radios (models beginning with CP, CM, MagOne):
      • Software to program these can be purchased directly from Motorola. We can sell you the cable.
    • Vertex Standard Radios:  You can purchase software and cables from us. (some cables have been discontinued)
  4. If you don't have a FCC license we can help you apply for one.
    • These licenses are for businesses, non-profit organizations, local and state government agencies.
    • We do all the work! Give us a call at 855-289-2929.


What is included in Basic Radio Programming?

Basic radio programming is designed to get you up and running with a configuration which includes:

  • Up to 16 channels programmed to your FCC assigned frequencies (simplex or duplex)
  • A default configuration of key functions
  • Your program settings saved for future purchases
  • No password protection to allow re-programming by another person

For customers who already have radios we will match from your existing radio of the same model (requires you to send us a radio).



Programming Services Not Included:

At this time we do not provide programming of advanced features. The features below are NOT included with basic programming.

  • Programming radios purchased elsewhere
  • More Than 16 Channels
  • Channel Scan / Priority Scan
  • Encryption
  • Signal Tones (DTMF, 5-Tone, 2-Tone)
  • Private (1 to 1) calling
  • Group 1 to many calling
  • All Call
  • Emergency System
  • Man Down System
  • Lone Worker
  • Advanced Audio Profiles
  • Dual Capacity Direct Mode
  • Voice Announcement
  • Text Messaging
  • Work Order Ticketing
  • ARTS
  • Remote Monitor
  • Telephone Interconnect

* This does not include all advanced features and should only be used to establish an example of what features are considered advanced.



Thumb File information
F5220D F6220D Spec Sheet.pdf 524.06KB
F5220D Operating Programming Guide.pdf 1.31MB
F5220D F6220D Instruction Manual.pdf 854.77KB
