Ritron Q Series 2-Way Radio Callbox | MURS Vrsion

Ritron Q Series
Ritron Q Series
License-Free
Ritron Q Series
Ritron Q Series
Ritron Q Series 2-Way Radio Callbox | MURS Vrsion
  • Product Pdf

    RQX-Q-Series_Analog_User_Manual :
    RQX-Q-Series_NXDN_User_Manual :
    RQX-Q-Series_DMR_User_Manual :
$499.95
6 or more $494.95
  • Stock: In Stock
  • Brand: Ritron
  • Model: RQX-Q
  • SKU: RXQ-111M or RXQ-117M

Available Options

Ritron Q Series 2-Way Radio Callbox | MURS Version

Provide communications from any location at your facility with the Ritron Q Series callbox. The Q Series call box can be placed indoors, outdoors, or virtually anywhere else you need it to maximize efficiency, improve safety and speed up response time for clients and co-workers on the job. No wires, trenching or construction for installation is needed. The Q series deploys easily as a standalone callbox to connect with your mobile, handheld or stationary base station radios without the costly installation of a wired intercom system. It is programmable in the field or via PC with user adjustable settings.

The Ritron Q Series Callbox is available in UHF, VHF or license-free MURS versions with one channel and 154 interference eliminator codes. It has high-gain mic capability and a built-in speaker with high audio output to make it easy to hear in loud environments. It can be powered by 3 alkaline "D" Cell batteries (not included) or an optional external 12VDC adapter.

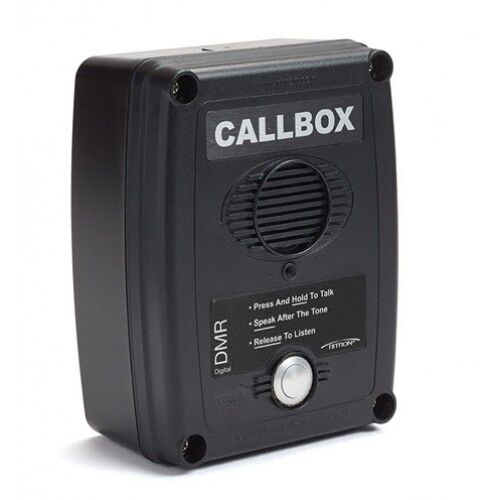

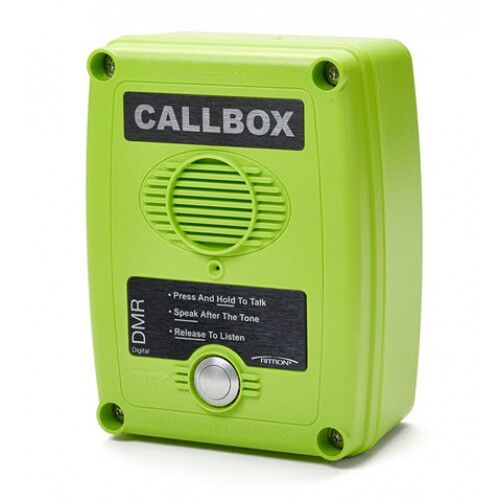

The Ritron Q Callbox has an internal antenna and a PTT button on the front for instant, simple operation. The rugged, polycarbonate gasket-sealed enclosure is durable, weatherproof and tamper resistant against vandals. It has a standard flange mount hole pattern for easy installation with optional mounting brackets. The callbox housing is available in your choice of bright green or black.

The Ritron Q Series Callbox comes with battery tray, metal wall-mount brackets, hardware, T-25 Torx bit (hollow point type), owner's manual and a one year manufacturer warranty.

Ritron Q Series Callbox At-A-Glance

  • 2 Models:
    • Q1 Series Basic model
    • Q7 Series with Built-in Relay Control, Recordable Voice Message Capability, and Dry-Contact Switch Inputs
  • 1 Channel
  • Analog
  • MURS Frequencies (License Free VHF)
  • 2 Watts Transmit Power (w/External 12VDC Power)
  • Front Speaker
  • 154 Interference Eliminator Codes
  • Uses 3 Alkaline D-Cell Batteries
  • DC or AC Power
  • Automatic Turn-Off and Always-On Intercom Feature
  • PC Configurable
  • Field Programmable
  • Normal or High Microphone Gain
  • Adjustable Speaker Volume
  • Internal Antenna
  • Optional External Antenna (Requires Ritron PN 60201125)
  • External AC Power Option (Requires RPS-EXPO-PLUS)
  • Weather Resistant Housing
  • One Year Manufacturer Warranty


Ritron Q Series Callbox Version Chart

Model Frequency Analog/Digital Relay Control Voice Message Color
RQX-111 VHF 150-165 MHz Analog Only
No NoGreen or Black
RQX-111M MURS - License Free
Analog Only
No No
Green or Black
RQX-411 UHF 450-470 MHz
Analog Only
No No Green or Black
RQX-117 VHF 150-165 MHz Analog Only
Yes Yes Green or Black
RQX-117NX
VHF 150-165 MHz NXDN Digital & Analog Yes Yes Green or Black
RQX-117DMR VHF 150-165 MHz
DMR Digital & Analog Yes Yes Green or Black
RQX-117M MURS - License Free
Analog Only
Yes Yes Green or Black
RQX-417 UHF 450-470 MHz Analog Only
Yes Yes Green or Black
RQX-417NX UHF 450-470 MHz
NXDN Digital & Analog Yes Yes Green or Black
RQX-417DMR UHF 450-470 MHz
DMR Digital & Analog Yes Yes Green or Black


What's in the box:

1   Ritron Q1 Series Call Box (choose options)
1   Mounting Brackets
1   T-25 Torx Bit (Hollow Point Type)
1   Owner's Manual


Radios modified at the customer's request, such as programming or installation of logic boards, are not returnable.  For more information please see our Returns Policy.

This radio is requires an FCC license to operate. We can assist you with getting a license when ordering radios.

General Features
FCC Approval MURS Part 95 License-Free
Frequency Band(s) MURS VHF Frequency List: 151.820, 151.880, 151.940, 154.570, 154.600
# of Channels & Zones 1 Channel
Output Power
Weight (with battery) N/A
Display No
# of Programmable Keys 0
Full 16-Key Keypad No
IP Rating (Water & Dust) N/A - made for indoor use
Receiving Audio Output 8 watt audio amplifier
Digital No
Trunking Capable No
Voice Scrambler | Encryption No
Other 1 Year Warranty
