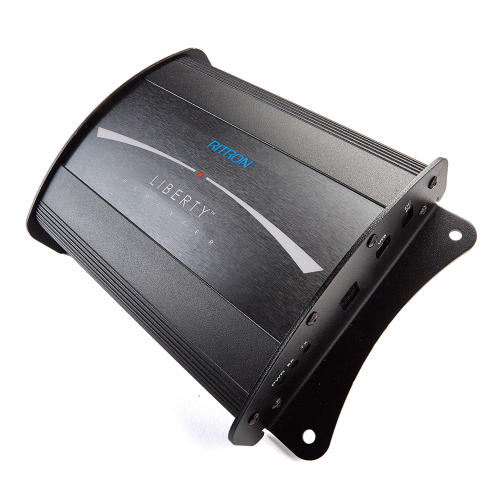

Ritron Liberty Repeater Range Extender | Analog

Ritron Liberty
Ritron Liberty
Ritron Liberty
Ritron Liberty
Ritron Liberty Repeater Range Extender | Analog
$972.95
  • Stock: In Stock
  • Brand: Ritron
  • Model: Ritron-Liberty-Repeater-Analog
  • SKU: RLR-465-N

Available Options

Ritron Liberty Analog 5W Repeater At-A-Glance


  • UHF 450-470MHz
  • Analog
  • 5 Watts
  • Includes Built-in Duplexer and Power Supply
  • Tuned to Your Frequencies
    • Requires frequencies for tuning
    • Must have 5MHz separation of TX and RX frequencies
  • Compact size 2.125" H X 8.0" W X 5.75" D
  • Lightweight: 3.5 lbs
  • Built-In Mounting Flanges
  • RF Connector "N" Type
  • Repeaters require time to build and tune. Generally, expect 2 weeks until shipment.
  • 1 year warranty

The Liberty Repeater is the perfect solution to extend your radio range for on-site communication needs. Perfect for “tough-to-cover” locations suffering from poor and spotty coverage. When properly located and matched with the appropriate antenna the Liberty repeater provides seamless communication from one radio to another, virtually eliminating shadowing, fading, and dead spots.

Rugged and compact, the UHF analog Liberty repeater is a fully integrated solution, eliminating the cost of having to purchase separate components. The Liberty repeater ground-up design results in an efficient, full duplex, on-site repeater with built-in power supply. The built-in duplexer allows you to use a single antenna for both transmit and receive.

Big in performance and features, yet small in size and price, the Liberty repeater measures only 2.125"H x 8.0"W x 5.75"D. It’s all-metal, powder coated, extruded aluminum housing provides durability and protection for the RF electronics and 4 cavity notch-type duplexer, built-in mounting flanges and included AC to DC power supply make installation easy (antenna not included).

Ideal for use at: Golf Courses • Schools • Construction Sites • Retail Stores • Colleges • Hospitals • Assisted Living Facilities • Shopping Malls • Manufacturing Plants • Warehousing • Amusement Parks • Special Events


What's in the box:

1   Ritron Liberty Analog Repeater
1   RAM-45 Antenna (optional)
1   Coaxial Cable (optional, either 25' or 50')
1   Owner's Manual



Radios modified at the customer's request, such as programming or installation of logic boards, are not returnable.  For more information please see our Returns Policy.

This radio is requires an FCC license to operate. We can assist you with getting a license when ordering radios.

General Features
FCC Approval Part 90 (Business License)
Frequency Band(s) UHF 450-470MHz
# of Channels & Zones 1 Channel, requires 5MHz separation of TX and RX frequencies
Output Power 5W
IP Rating (Water & Dust) N/A - made for indoor use
Digital No
Other 1 Year Warranty
FCC ID AIERIT15-460

Radio Programming Options

The following does not apply to FRS, MURS, GMRS, LTE, Satellite, or IP radios.

Most business radios aren't ready to use out-of-the-box. So radio programming is needed to set the frequencies in the radio. For some radios the frequencies can be set through a menu interface. While other radios must be programmed using a PC, radio software, and a cable to connect the radios.

Here are your programming options:

  1. We can program your radios - with radio orders
    • We provide basic radio programming for radios ordered through us. See the description below of basic radio programming.
    • Email us your Frequencies & Call Sign - the FCC requires dealers to verify your license before we program.
    • Please allow 1-2 days for first-time setup of radio programming.
    • Due to staffing limitations, we are not able to program radios purchased from other dealers.
  2. Match to your Previous Order
    • If you've ordered from us before we have your information stored.
  3. You can program the radio(s)
    • Connect Systems (all models): You can purchase software and cables from us.
    • Kenwood ProTalk Business Radios (NX-P1300/NX-P1200 series, TK series, PKT)
      • Have pre-stored frequencies and you can easily program these radios through the radio's menu interface.
      • Custom frequencies will require dealer programming.
    • Icom (all models): Icom no longer allows dealers to sell software and cables over the internet. You may call us to discuss your options.
    • Motorola Business Radios (models beginning with CLP. CLS, RM, RD):
      • Have pre-stored business frequencies (Part 90). Software to program these radios is available on the Motorola website.
      • Just go to the product page on Motorola's website and you can download it for free. We can sell you the cable.
      • Custom frequencies will require dealer programming.
    • Motorola Commercial Radios (models beginning with CP, CM, MagOne):
      • Software to program these can be purchased directly from Motorola. We can sell you the cable.
    • Vertex Standard Radios:  You can purchase software and cables from us. (some cables have been discontinued)
  4. If you don't have a FCC license we can help you apply for one.
    • These licenses are for businesses, non-profit organizations, local and state government agencies.
    • We do all the work! Give us a call at 855-289-2929.


What is included in Basic Radio Programming?

Basic radio programming is designed to get you up and running with a configuration which includes:

  • Up to 16 channels programmed to your FCC assigned frequencies (simplex or duplex)
  • A default configuration of key functions
  • Your program settings saved for future purchases
  • No password protection to allow re-programming by another person

For customers who already have radios we will match from your existing radio of the same model (requires you to send us a radio).



Programming Services Not Included:

At this time we do not provide programming of advanced features. The features below are NOT included with basic programming.

  • Programming radios purchased elsewhere
  • More Than 16 Channels
  • Channel Scan / Priority Scan
  • Encryption
  • Signal Tones (DTMF, 5-Tone, 2-Tone)
  • Private (1 to 1) calling
  • Group 1 to many calling
  • All Call
  • Emergency System
  • Man Down System
  • Lone Worker
  • Advanced Audio Profiles
  • Dual Capacity Direct Mode
  • Voice Announcement
  • Text Messaging
  • Work Order Ticketing
  • ARTS
  • Remote Monitor
  • Telephone Interconnect

* This does not include all advanced features and should only be used to establish an example of what features are considered advanced.
