BlackBox Plus Radio

BlackBox Plus Radio
BlackBox Plus Radio
BlackBox Plus Radio
BlackBox Plus Radio
BlackBox Plus Radio
  • Product Pdf

    Blackbox Plus-User Manual :

Available Options

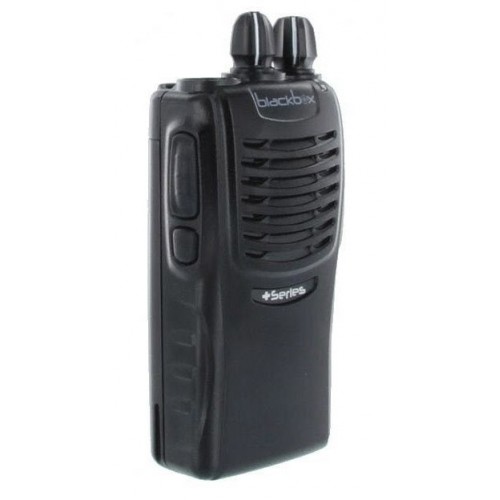

BlackBox Plus Two Way Radio

  • 16 Channels
  • 1 Programmable Key
  • 4 / 5 Watts (UHF / VHF)
  • Analog
  • Audio Connector:  M1 (Motorola) 2-pin connector
  • Voice Enunciation on Channels
  • Repeater Capable
  • 3 Year Warranty

BlackBox Plus At-A-Glance

The Blackbox Plus comes packed with power and features. This UHF radio offers up to 4 watts (UHF or 5 watts (VHF) of transmit power. There are 16 channels with 50 CTCSS and 104 CDCSS private line codes. The BlackBox Plus features 2-Tone Encode/Decode, VOX, Voice Enunciation for each channel, a Programmable Button, Busy Channel Lockout, a Time-out Timer, Priority Scan and low battery alert.

Durability is built into the BlackBox Plus. This radio is enclosed in an all-metal chassis and is IP54 water resistant. Even with this toughness, the radios are still amazingly small and lightweight. The BlackBox Plus is only 1.26" L x 2.165" W x 4.37" H and weighs only 8.2 ounces (232g).

And it’s backed by a 3-year manufacturers warranty.



What's in the box:

1   BlackBox Plus Radio (Choose VUF or UHF)
1   Antenna
1   Battery
1   Belt Clip
1   Rapid Charger
1   Owner's Manual
1   Accessory Clamp



Radios modified at the customer's request, such as programming or installation of logic boards, are not returnable.  For more information please see our Returns Policy.

This radio is requires an FCC license to operate. We can assist you with getting a license when ordering radios.

General Features
FCC Approval Part 90 (Business License)
Frequency Band(s) VHF or UHF
# of Channels & Zones 16 Channels
Output Power 5W (VHF) & 4W (UHF)
Weight (with battery) 8.2oz
Display No
# of Programmable Keys 1
Full 16-Key Keypad No
IP Rating (Water & Dust) IP54
Receiving Audio Output 750mW
Digital No
Trunking Capable No
Voice Scrambler | Encryption No
Other 3 Year Warranty, Channel Announce

Radio Programming Options

The following does not apply to LTE, Satellite, or IP radios.

Most business radios aren't ready to use out-of-the-box. So radio programming is needed to set the frequencies in the radio. For some radios the frequencies can be set through a menu interface. While other radios must be programmed using a PC, radio software, and a cable to connect the radios.

Here are your programming options:

  • You can program the radio(s)
    • For radios with pre-stored frequencies you can easily program them through the radio's menu interface.
    • For PC programmable radios you will need the programming cable(s) and software. In many cases you can purchase this from us.
  • We can program your radios
    • Email us your Frequencies & Call Sign - the FCC requires dealers to verify your license before we program.
    • Please allow 1-2 days for first-time setup of radio programming.
  • Match to your Previous Order
    • If you've ordered from us before we have your information stored.
  • If you don't have a FCC license we can help you apply for one
    • These licenses are for businesses, non-profit organizations, local and state government agencies.
    • We do all the work! Give us a call at 855-289-2929.


What is included in Basic Radio Programming?

Basic radio programming is designed to get you up and running with a configuration which includes:

  • Up to 16 channels programmed to your FCC assigned frequencies (simplex or duplex)
  • A default configuration of key functions
  • Your program settings saved for future purchases
  • No password protection to allow re-programming by another person

For customers who already have radios we will match from your existing radio of the same model (requires you to send us a radio).



Programming Services Not Included:

At this time we do not provide programming of advanced features. The features below are NOT included with basic programming.

  • Programming radios purchased elsewhere
  • More Than 16 Channels
  • Channel Scan / Priority Scan
  • Encryption
  • Signal Tones (DTMF, 5-Tone, 2-Tone)
  • Private (1 to 1) calling
  • Group 1 to many calling
  • All Call
  • Emergency System
  • Man Down System
  • Lone Worker
  • Advanced Audio Profiles
  • Dual Capacity Direct Mode
  • Voice Announcement
  • Text Messaging
  • Work Order Ticketing
  • ARTS
  • Remote Monitor
  • Telephone Interconnect

* This does not include all advanced features and should only be used to establish an example of what features are to be considered to be advanced.
