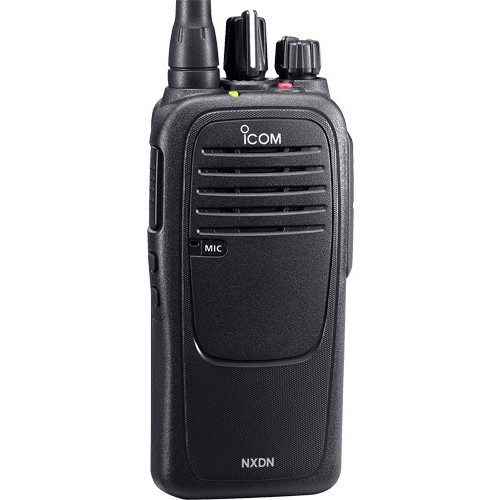

ICOM F1000D F2000D - Discontinued Replaced by F1100D F2100D
- 16 Channels
- 3 Programmable Keys
- 4 / 5 Watts (UHF / VHF)
- Rugged & Waterproof
- 1,500mW Loud Crystal Clear Audio
- Digital Voice Scrambler
- Optional GPS speaker-microphone
- Waterproof Li-Ion Battery & Rapid Charger Included
- Channel Announce
- Compact Design
- Repeater Capable
- PC Programming Setup ²
ICOM F1000D | F2000D At-A-Glance
Icom's new addition to their Digital Land Mobile line-up, the IC-F1000D (VHF) & IC-F2000D (UHF) has superior water-tight protection. With an IP rating of IP67 this radio can withstand 1m depth of water for 30 minutes. It's dust-tight construction prevents the intrusion of powder dust, sand, mud and anything else you can throw at it! The supplied waterproof Li-Ion battery pack, BP-280WP (2400mAh typ.) provides approximately 18 hours of operating time under normal usage.
The large 36mm speaker provides 1.5 watts of clear audio, making it a market leader in this feature. The built-in BTL amplifier doubles the audio output power and delivers loud and intelligible voice to a radio operator working in noisy environments.
With the Channel Announce feature when you rotate the channel knob, the radio announces the channel number. Convenient for making radio adjustments without having to look at the radio.
IDAS™ Digital Mode Operation
The IC-F1000D/F2000D can program Type-D single-site trunking and digital conventional modes, as well as analog mode per channel. The IDAS digital mode employs 4-level FSK modulation and the NXDN™ common air interface, offering true 6.25kHz spectrum efficiency, higher security and better audio clarity – even at the fringes of the communication range.
ICOM F1000D | F2000D Signaling Features
The IC-F1000 / F2000 has built-in 2-Tone, 5-Tone, CTCSS and DTCS signaling capabilities for group communication, or selective calling.
ICOM F1000D | F2000D Lone Worker & Emergency
The Lone Worker function activates when the radio is not operated for a preset period, the radio sounds beeps and requires the user to push any button to reset. If the radio is not operated for a preset time, an emergency signal is automatically transmitted to inform co-workers that something may have happened to the individual worker. The Emergency function is activated with the press of a single red button located on the top panel, used to transmit an emergency signal.
A new built-in motion sensor in the IC-F1000D series can detect its position, state of motion and non-motion, and can send an emergency signal. The motion function detects if the transceiver is moving or shaking, for example, during a chase.
ICOM F1000D | F2000D Surveillance Function
When this function is turned ON, the beep is not heard and the back-light and the LED indicator do not light, even when a signal is received, or a key is pushed.
See the full list of features in the 'Features' tab for this radio.
Icom Extended Warranty
Icom America Inc offers a 1, 2 or 3 year Extended Warranty on their land mobile radios. The Extended Warranty period starts after the standard warranty period expires. This is a full manufacturer's warranty, backed by Icom America and it's service technicians. Protect your original investment by adding Extended Warranty coverage.
End user pays all shipping fees to and from the service department for repairs. Extended Warranty must be purchased at time of product purchase. Icom Service centers are located in the following states; Washington, California, Illinois, and New York.
What's in the box:
1 Radio: F1000D (VHF) or F2000D (UHF)
1 Waterproof Battery
1 Belt Clip
1 Owner's Manual
1 Rapid Charger
1 110V AC adapter
* Radios modified at the customer's request, such as programming or installation of logic boards, are not returnable. For more information please see our Returns Policy.
This radio is requires an FCC license to operate. We can assist you with getting a license.
|Frequency Band(s)||VHF (F1000D) & UHF (F2000D)|
|# of Channels & Zones||16 Channels|
|Output Power||5W (VHF) & 4W (UHF)|
|Weight (with battery)||9.17oz|
|# of Programmable Keys||3|
|Full 16-Key Keypad||No|
|IP Rating (Water & Dust)||IP67, Submersible for 30 minutes to a depth of 1 meter|
|Receiving Audio Output||1,500mW|
|Trunking Capable||Type-D Single-site|
|Voice Scrambler | Encryption||Yes, digital mode|
|Other||IDAS & NXDN|
